Everything on this rig came from a hardware shop or a kitchen drawer. Here is what each part actually does.

01

What it is made of

A cordless drill does the turning. It sits in a clamp bolted to a chopping board, and the board is what keeps everything lined up over the pot. The churn head is hardwood on a steel shaft, screwed together rather than glued, which is the reason I made it instead of buying one.

The electronics live in a clear plastic food box, mostly so I can see whether anything has caught fire. A Raspberry Pi runs the logging. The large yellow button cuts power to the motor and nothing in software gets to override it.

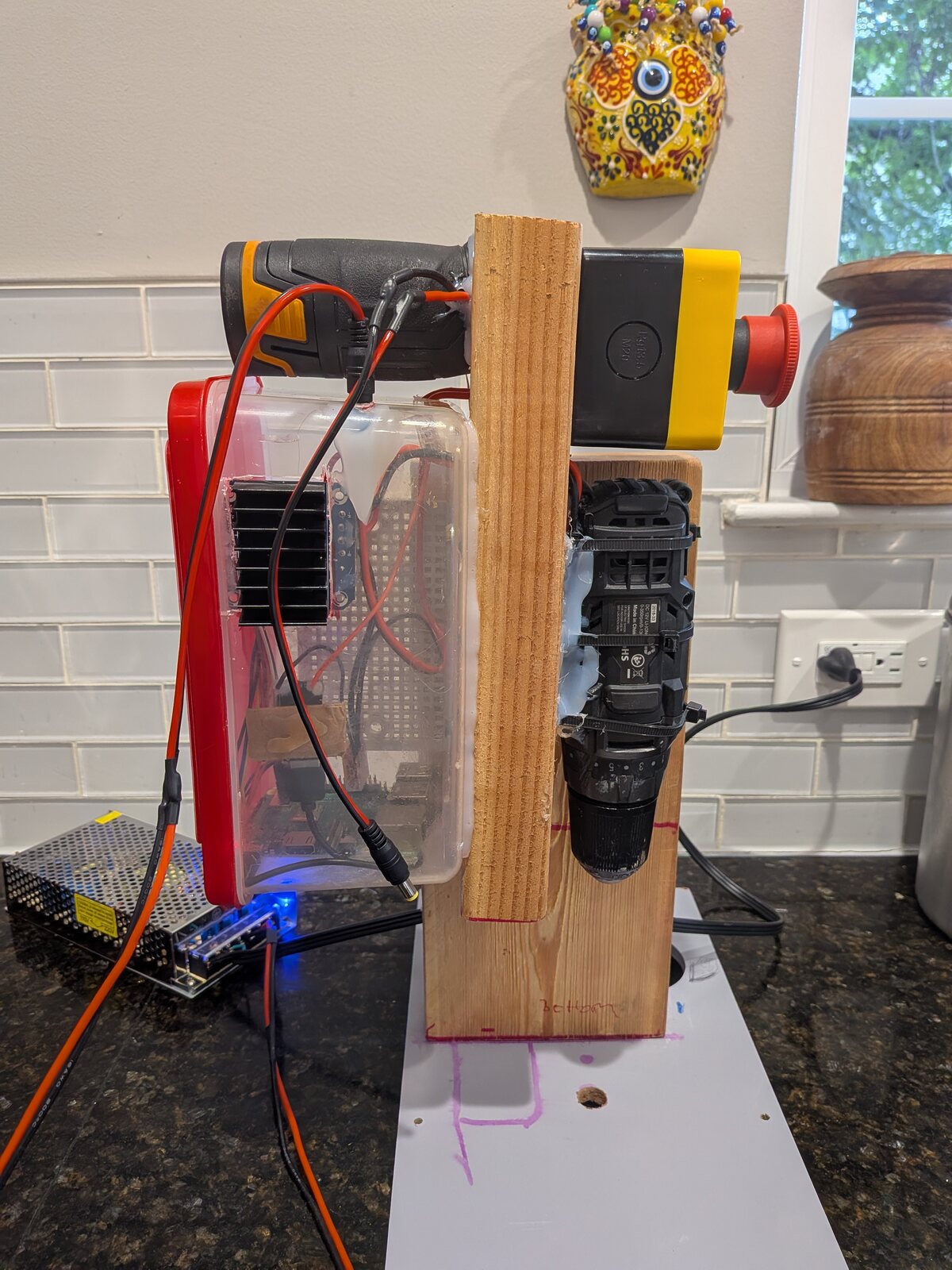

The rig on a kitchen counter, showing the drill in its clamp, the wooden board, the clear box of electronics and a Raspberry Pi at the base.
Drill, board, box, button

02

How it is wired

Four signal wires and one fat loop. The Pi works out how hard and which way, the H bridge is what actually pushes the current, and the two never meet. Nothing the Pi touches carries more than a few milliamps.

The button is the part worth looking at. It is not wired to the Pi at all. It sits in the motor loop and breaks it, so no software fault can talk it out of stopping. What the Pi can do is notice. If it is asking for thirty per cent and the sensor comes back with less than two hundred milliamps, it works out that the loop is open and stops asking.

The sensor is on the same loop but its logic side runs off the Pi, which is why it still answers when the supply is off. That is the whole trick behind the button check.

A schematic of the ghee rig. A Raspberry Pi drives a BTS7960 H bridge over four signal wires and reads an INA260 current sensor over I2C. A twelve volt supply, a fifteen amp fuse, the emergency stop button and the sensor sit in series in the motor loop, which the Pi never touches.
Circuit diagram

03

Where it sits

Over the sink. The pot goes in the basin, a flat cover sits on top with a hole cut for the shaft, and anything that escapes lands somewhere that does not matter.

This is the part nobody puts in the render. Half of building something in a kitchen is deciding where the mess is allowed to go.

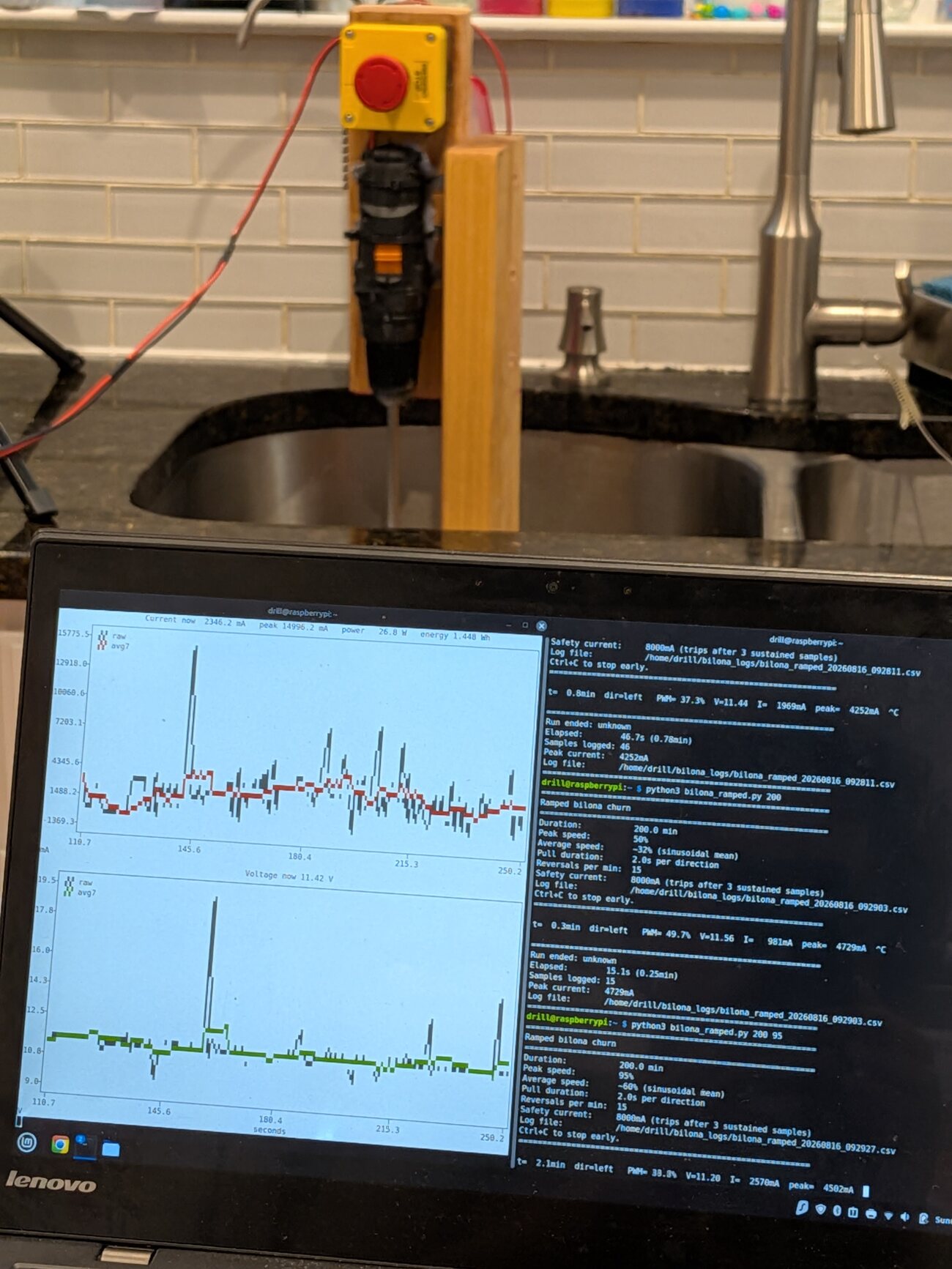

The rig clamped in position above the kitchen sink with a laptop below it showing live plots.
In position, mid run

04

What it watches

While it is churning, current and voltage on the motor line, sampled about once a second and written straight to a file. While it is cooking, a probe in the pot instead, and the regulator cuts the hotplate in and out to hold the number.

No microphone and no camera, which is the next thing I want to fix. The bet up to now was that if the load on its own is enough to find the break, the rest can wait.

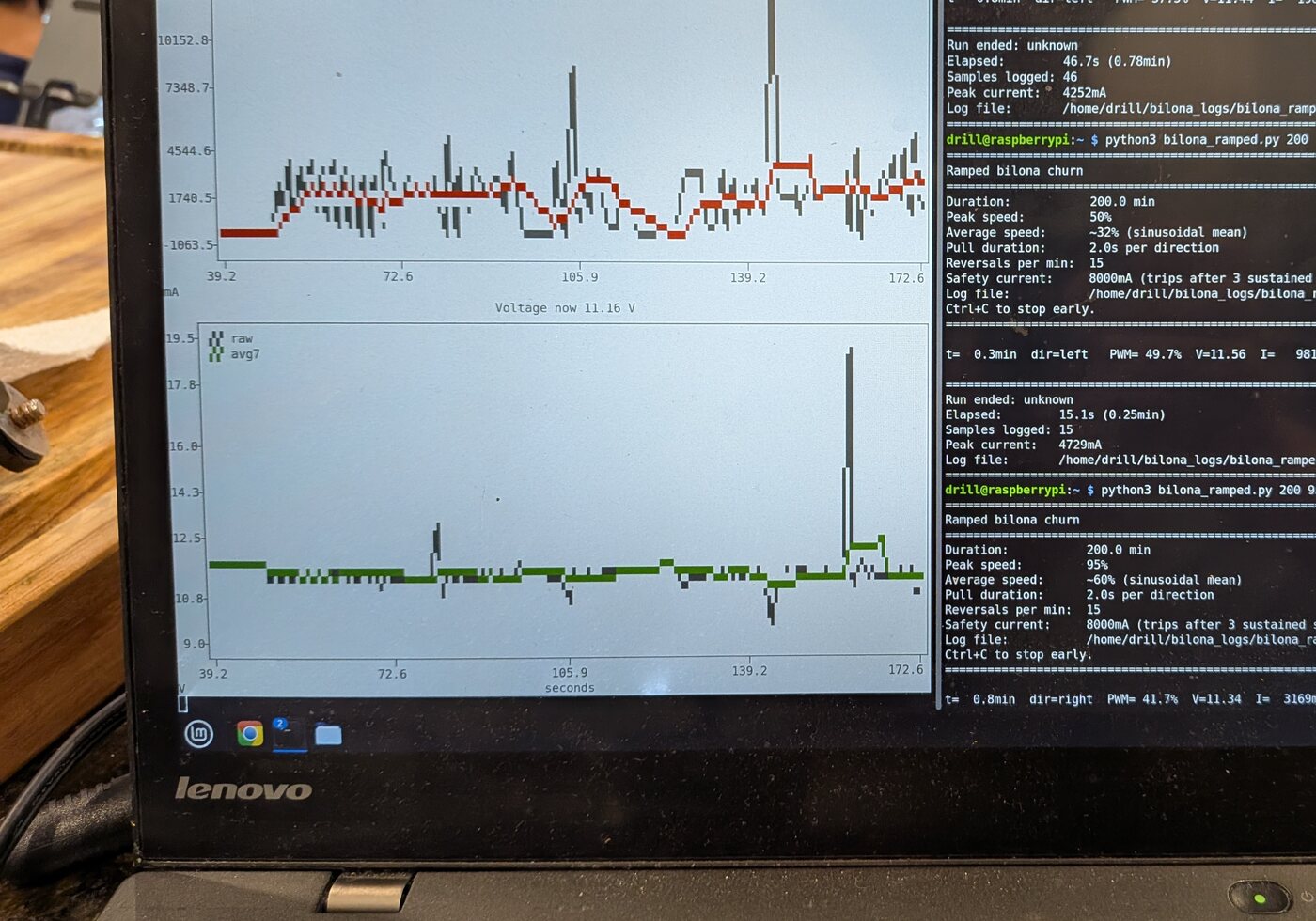

A laptop screen showing two live plots of the motor readings above a scrolling terminal log.
The live trace during a run

05

What it decides

Two things. Whether the load has climbed and then fallen far enough to call the break, and whether the plate should be on or off to sit at 250 F.

It does not know what yogurt is. It does not know what butter is. It knows that a number went up for a while and then dropped away, and that this shape means the job is finished.
